ISOM3-300-B-L2 | Bourns Electronics GmbH
Hybrid protection component, radial, 6000 A, 385 V (DC), 300 V (AC), ISOM3-300-B-L2
Unit Price (€ / pc.)
0.833 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Varistor series IsoMOV
By combining the best features of both MOV and GDT technologies in a single component, the IsoMOV™ series achieves high performance with low capacitance, very low leakage current and excellent power handling density. The IsoMOV™ series is ideally suited for AC and DC power supply applications where highest performance and/or space savings are required.
Technical specifications

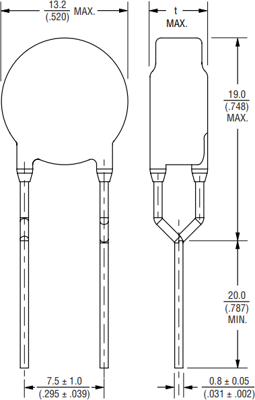

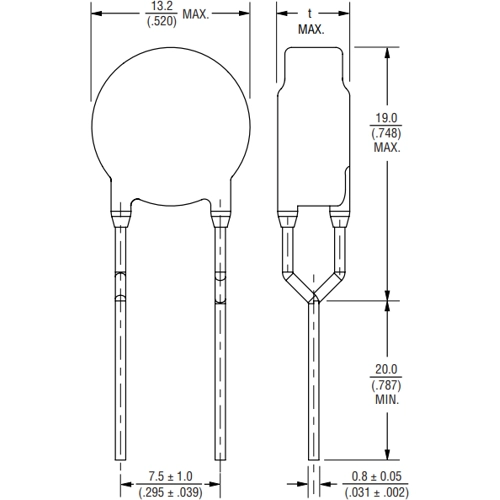

| Bauform | radial | |
| max. Stoßstrom (8/20 µs) | 6000 A | |
| max. Temperatur | 125 °C | |
| min. Temperatur | -40 °C | |
| Nennspannung (AC) | 300 V | |
| Nennspannung (DC) | 385 V | |
| Norm | UL, CSA | |
| Rastermaß | 7.5 mm |
Download
Logistics
| Ursprungsland | CR |
| Zolltarifnummer | 85334090 |
| MSL | MSL 1 |
| Originalverpackung | Bulk mit 500 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
