ISOM5-555-B-L2 | Bourns Electronics GmbH
Hybrid protection component, radial, 10000 A, 745 V (DC), 555 V (AC), ISOM5-555-B-L2
Unit Price (€ / pc.)
0.9996 € *
Available: 0 pcs.
Leadtime: 16 Weeks **
Varistor series IsoMOV
By combining the best features of both MOV and GDT technologies in a single component, the IsoMOV™ series achieves high performance with low capacitance, very low leakage current and excellent power handling density. The IsoMOV™ series is ideally suited for AC and DC power supply applications where highest performance and/or space savings are required.
Technical specifications
| Design | radial | |
| max. Surge current, transient (8/20 µs) | 10000 A | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -40 °C | |
| Rated voltage (AC) | 555 V | |
| Rated voltage (DC) | 745 V | |
| Standard number | UL, CSA | |

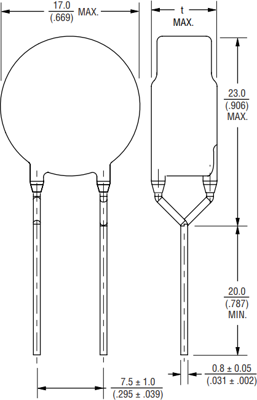

| Grid | 7.5 mm |
Download
Logistics
| Country of origin | CR |
| Customs tariff number | 85334090 |
| MSL | MSL 1 |
| Original Packaging | Bulk with 300 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
