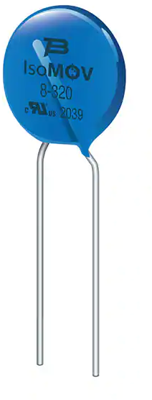

ISOM8-250-B-L2 | Bourns Electronics GmbH
Hybrid protection component, radial, 15000 A, 320 V (DC), 250 V (AC), ISOM8-250-B-L2
Unit Price (€ / pc.)
2.4514 € *
Available: 80 pcs.
Leadtime: 14 Weeks **
Total Price:
2.45 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4514 €
10 pcs.
1.7493 €
50 pcs.
1.4875 €
2000 pcs.
1.1781 €
*incl. VAT plus shipping costs
**Subject to prior sale
Varistor series IsoMOV
By combining the best features of both MOV and GDT technologies in a single component, the IsoMOV™ series achieves high performance with low capacitance, very low leakage current and excellent power handling density. The IsoMOV™ series is ideally suited for AC and DC power supply applications where highest performance and/or space savings are required.
Technical specifications
| Bauform | radial | |
| max. Stoßstrom (8/20 µs) | 15000 A | |
| max. Temperatur | 125 °C | |
| min. Temperatur | -40 °C | |
| Nennspannung (AC) | 250 V | |
| Nennspannung (DC) | 320 V | |
| Norm | UL, CSA | |

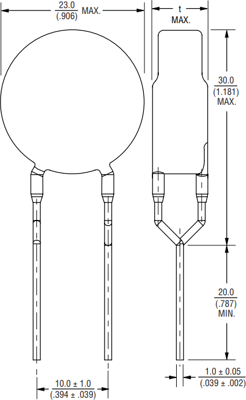

| Rastermaß | 10 mm |
Download
Logistics
| Ursprungsland | CR |
| Zolltarifnummer | 85334090 |
| MSL | MSL 1 |
| Originalverpackung | Bulk mit 200 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
