ISOM8-300-B-L2 | Bourns Electronics GmbH
Hybrid protection component, radial, 15000 A, 385 V (DC), 300 V (AC), ISOM8-300-B-L2
Unit Price (€ / pc.)
1.19 € *
Available: 0 pcs.
Leadtime: 19 Weeks **
Varistor series IsoMOV
By combining the best features of both MOV and GDT technologies in a single component, the IsoMOV™ series achieves high performance with low capacitance, very low leakage current and excellent power handling density. The IsoMOV™ series is ideally suited for AC and DC power supply applications where highest performance and/or space savings are required.
Technical specifications

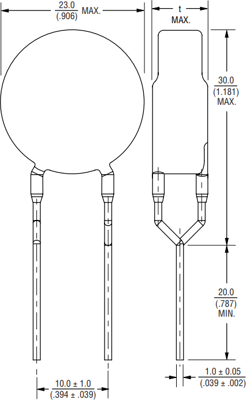

| Design | radial | |
| max. Surge current, transient (8/20 µs) | 15000 A | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -40 °C | |
| Rated voltage (AC) | 300 V | |
| Rated voltage (DC) | 385 V | |
| Standard number | UL, CSA | |
| Grid | 10 mm |
Download
Logistics
| Country of origin | CR |
| Customs tariff number | 85334090 |
| MSL | MSL 1 |
| Original Packaging | Bulk with 200 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
