MOV-14D431KTR | Bourns Electronics GmbH
Metal oxide varistor, radial, VV 430 V, 4500 A, 350 V (DC), 275 V (AC), ±10 %, 115 J, MOV-14D431KTR
Unit Price (€ / pc.)
0.1809 € *
Available: 0 pcs.
Leadtime: 17 Weeks **

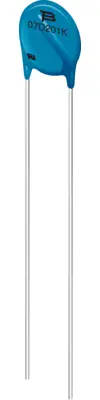

Metal oxide varistor, MOV-14D431KTR, Bourns Electronics GmbH
The MOV-14D431KTR radial leaded varistor device protects against overvoltage transients such as lightning, power contact and power induction. The device has a high current handling, high energy absorption capability and fast response times to protect against transient faults up to rated limits.
Features
- High voltage and current rating
- Bidirectional
- Surge protection
- RoHS compliant
Applications
- Power supplies
- Power systems
- Line voltage
- Telecom systems
- White goods/appliances
Technical specifications
| Bauform | radial | |
| Energieabsorption | 115 J | |
| max. Stoßstrom (8/20 µs) | 4500 A | |
| max. Temperatur | 85 °C | |
| min. Temperatur | -40 °C | |
| Nennspannung (AC) | 275 V | |
| Nennspannung (DC) | 350 V | |
| Toleranz | ±10 % | |
| Varistor Spannung Typ | 430 V |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85334090 |
| MSL | MSL 1 |
| Originalverpackung | Bulk mit 400 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
