PWR221T-50-10R0F | Bourns Electronics GmbH
Thick film resistor, 10 Ω, 50 W, ±5 %, PWR221T-50-10R0F
Unit Price (€ / pc.)
3.6414 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Power resistor, PWR221T-50-10R0F, Bourns Electronics GmbH

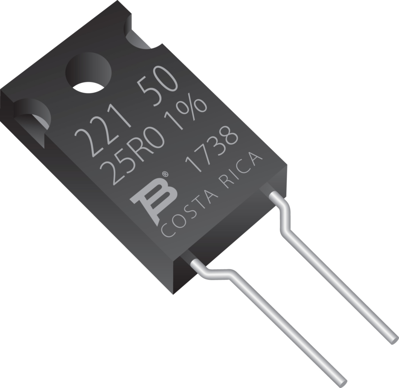

The PWR221T-50-10R0F is a TO-220 style power resistor made using thick film on alumina ceramic technology. It is used in current limiting, capacitor discharge or current measurement circuits in power supplies for telecom and industrial applications.
Features
- Low inductance
- Ceramic backplane
- High power rating
- RoHS compliant
Applications
- Power supplies
- Motor drives
- Test and measurement
- Rectifiers
Technical specifications
| ohmic resistance | 10 Ω | |
| Version | thick film resistor | |
| Design | radial | |
| Width | 3.18 mm | |
| Height | 16.26 mm | |
| Length | 10.41 mm | |
| Power | 50 W | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -55 °C | |
| Assembly | THT | |
| Tolerance | ±5 % | |
| Temperature coefficient | ±100 ppm/K |
Download
Logistics
| Country of origin | CR |
| Customs tariff number | 85332900 |
| MSL | MSL 1 |
| Original Packaging | Bar with 50 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
