PWR221T-50-R500F | Bourns Electronics GmbH
Thick film resistor, 500 mΩ, 50 W, ±5 %, PWR221T-50-R500F
Unit Price (€ / pc.)
4.4744 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Power resistor, PWR221T-50-R500F, Bourns Electronics GmbH

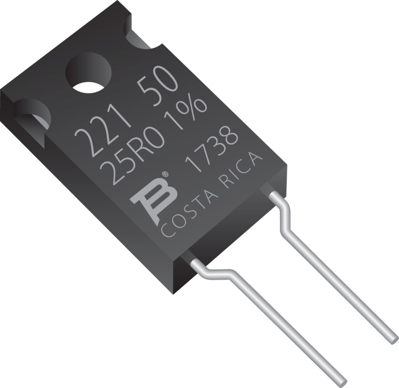

The PWR221T-50-R500F is a TO-220 style power resistor made using thick film on alumina ceramic technology. It is used in current limiting, capacitor discharge or current measurement circuits in power supplies for telecom and industrial applications.
Features
- Low inductance
- Ceramic backplane
- High power rating
- RoHS compliant
Applications
- Power supplies
- Motor drives
- Test and measurement
- Rectifiers
Technical specifications
| ohmscher Widerstand | 500 mΩ | |
| Ausführung | Dickschichtwiderstand | |
| Bauform | radial | |
| Breite | 3.18 mm | |
| Höhe | 16.26 mm | |
| Länge | 10.41 mm | |
| Leistung | 50 W | |
| max. Temperatur | 105 °C | |
| min. Temperatur | -55 °C | |
| Montage | THT | |
| Toleranz | ±5 % | |
| Temperaturkoeffizient | ±100 ppm/K |
Download
Logistics
| Ursprungsland | CR |
| Zolltarifnummer | 85332900 |
| MSL | MSL 1 |
| Originalverpackung | Stange mit 50 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
