ES-457 | BRAINBOXES
Device server PoE ethernet to serial, 100 Mbit/s, RS232, (W x H x D) 101 x 100 x 27 mm, ES-457
Order No.: 06P8050
EAN: 4099891549848
MPN:
ES-457
Unit Price (€ / pc.)
247.6628 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
247.66 € *
Price list
Quantity
Price per unit*
1 pcs.
247.6628 €
3 pcs.
240.2491 €
*incl. VAT plus shipping costs
**Subject to prior sale

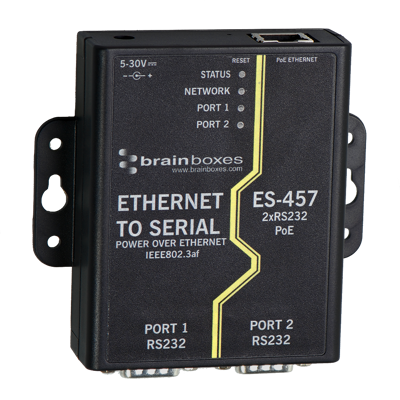

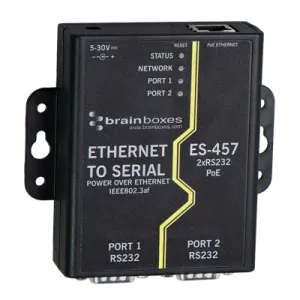

Ethernet to Serial Adapter, ES-457, BRAIN
Ethernet to Serial device server with Power over Ethernet providing access to two RS232 serial ports. Data transfer rates up to 1,000,000 baud (1 MegaBaud), coupled with 1Mbit/s line drivers deliver uncompromising performance.
Features
- Ethernet to Serial Device Server
- Data rate from 110 to 1,000,000 baud (1 MegaBaud)
- Install Virtual Com ports or use the Software APIs for Visual Basic, C# and more
- Serial Port Tunnelling allows serial cable replacement over any distance, no software required
- Optional DIN rail mounting kit
Technical specifications
| Version | ethernet-to-serial device server | |
| Width | 101 mm | |
| Data transmission rate | 100000000 mb/s | |
| Height | 100 mm | |
| Interfaces | RS232 | |
| Depth | 27 mm |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 85176200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
