SW-715 | BRAINBOXES

Ethernet switch, unmanaged, 5 ports, 1 Gbit/s, 5-30 VDC, SW-715

Order No.: 06P0936
EAN: 837324004298
MPN:
SW-715

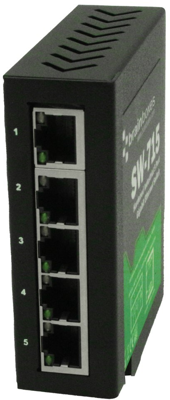

SW-715 BRAINBOXES Industrial ethernet switches Image 1

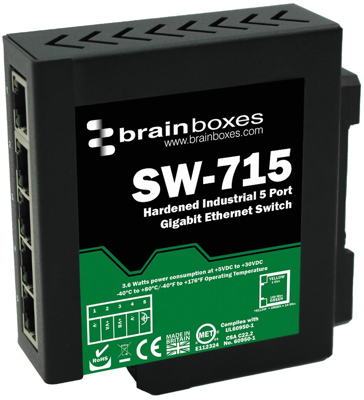

SW-715 BRAINBOXES Industrial ethernet switches Image 2

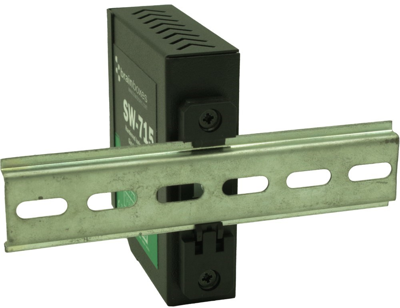

SW-715 BRAINBOXES Industrial ethernet switches Image 3

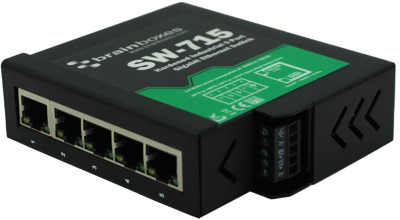

SW-715 BRAINBOXES Industrial ethernet switches Image 4
SW-715 BRAINBOXES Industrial ethernet switches Image 5
Image may differ
Unit Price (€ / pc.)
156.3541 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
156.35 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
156.3541 €

Ethernet switch, SW-715, BRAINBOXES

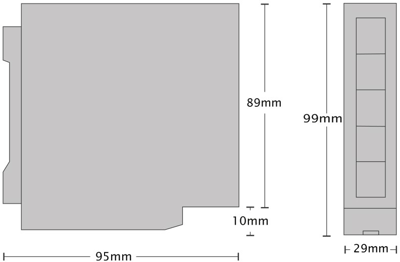

Compact industrial 5 port gigabit ethernet unmanaged switch. Galvanically isolated ethernet ports capable of 10/100/1000 Mbps. Industrial temperature range of -40°C to +80°C and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 29mm wide and 95mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.

Features

  • Integrated DIN Rail Mount with grounding
  • Redundant dual power inputs - reduces risk of power outage
  • Compact hardened enclosure
Technical specifications
Ausführung Ethernet Switch, unmanaged
Datenübertragungsrate 1000000000 mb/s
Montage DIN-Schiene
Ports 5
Spannung 5-30 VDC
Logistics
Ursprungsland GB
Zolltarifnummer 85176200
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
