PX-310 | BRAINBOXES

PCI Express Card, 2P. RS422/485, Serial Opto Iso

Order No.: 06P8046
EAN: 4099891552671
MPN:
PX-310
Series: PCI
PX-310 BRAINBOXES Network Interface Cards Image 1
PX-310 BRAINBOXES Network Interface Cards Image 2
Image may differ
Unit Price (€ / pc.)
370.3280 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
370.33 € *
Price list
Quantity
Price per unit*
1 pcs.
370.3280 €
2 pcs.
355.5006 €
5 pcs.
341.2682 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCI card, PX-310, Brainboxes

PCI Express Card providing two opto isolated RS422/485 serial ports. Data transfer rates up to 921,600 baud rates and the 128 byte deep transmitand 128 byte receive FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance on your PC.

It improves noise immunity by isolating the PC from the card’s transmit ground. Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 2000, XP, Server 2003, Vista, Server 2008, Windows 7, 8 and Windows 10.

Technical specifications

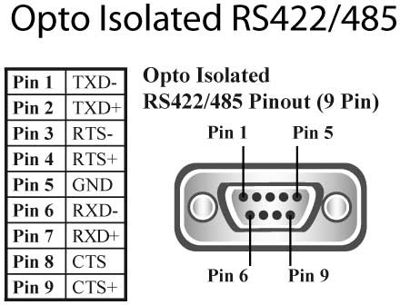

Anschluss 2 x D-Sub Stecker 9-polig
Ausführung PCI-Expresskarte
Ports 2
Logistics
Ursprungsland GB
Zolltarifnummer 84718000
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
