BXS002/1 | BULGIN

Battery holder for baby cell, 2 cells, panel mounting, BXS002/1

Order No.: 28A156
EAN: 4099889666359
MPN:
BXS002/1
Series: Battery Holders
BULGIN
BXS002/1 BULGIN Battery Holders
Image may differ
Unit Price (€ / pc.)
24.8948 € *
Available: 0 pcs.
Available in 5 Days: 3,113 pcs.
Leadtime: 18 Weeks **
Total Price:
24.89 € *
Price list
Quantity
Price per unit*
1 pcs.
24.8948 €
10 pcs.
22.9075 €
25 pcs.
21.0749 €
50 pcs.
19.1828 €
*incl. VAT plus shipping costs
**Subject to prior sale

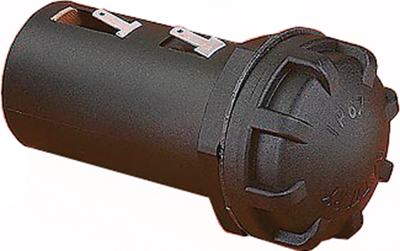

Battery holder with front panel flange for Baby cells, type Bulgin BSX00.

With screw lock, 2.8 mm tab terminals or solder connection; Degree of protection: IP 67. Operating temperatures: –30 to +70 °C. Inflammability: UL 94 V-0. Diameter: 42 mm. Panel thickness: max. 3.2 mm.

Technical attributes (type, number of cells, mounting depth): BXS002/1, 2 cells, 108.7 mm

Technical specifications
Usage baby cell
Number of cells 2
Assembly panel mounting
Logistics
Country of origin TN
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
