FX0385 | BULGIN

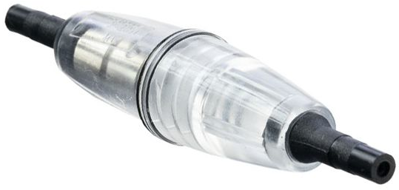

Cable fuse holder, 5 x 20 mm, 10 A, 250 V, in-line mounting, FX0385
Unit Price (€ / pc.)
7.4970 € *
Available: 1,082 pcs.
Leadtime: On Request **
Total Price:
7.50 € *
Price list
Quantity
Price per unit*
1 pcs.
7.4970 €
10 pcs.
6.5926 €
100 pcs.
5.7953 €
250 pcs.
5.5692 €
1000 pcs.
5.2122 €
*incl. VAT plus shipping costs
**Subject to prior sale
Line fuse holders, type Bulgin FX..85.
Made of transparent polybutene (UL 94 V-0), with screw terminals; Rated current: 10 . Rated voltage: 50 V (250 V for use in enclosed systems). Degree of protection: IP 66. Test voltage: 2.0 kV. Operating temperatures: –20 to +70 °C. Conductor cross-section: 1.0 mm². Cable diameter: 1.0 to 2.64 mm. Diameter: 16.5 mm.
Technical attributes (type, fuse size, length overall): FX0385, 5.0 x 20 mm, 79.2 mm
Technical specifications
| Connection | screw connection | |
| Version | closed | |
| Type of mounting | in-line mounting | |
| Touch protection | PC1 | |
| For Fuse | 5 x 20 mm | |
| Rated voltage | 250 V | |
| Rated current | 10 A | |
| Degree of protection (IP) | IP66 |
Download
Logistics
| Country of origin | TN |
| Customs tariff number | 85363010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
