PX0410/04P/4550 | BULGIN

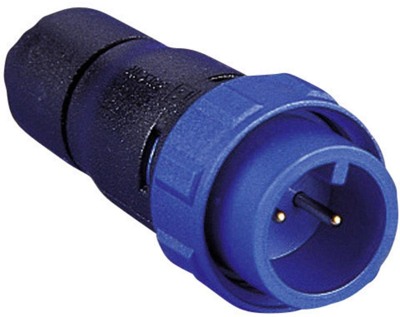

Plug, 4 pole, crimp connection, screw locking, straight, PX0410/04P/4550

Order No.: 70F5034
EAN: 4099889737479
MPN:
PX0410/04P/4550
PX0410/04P/4550 BULGIN Other Circular Connectors
Image may differ
Unit Price (€ / pc.)
14.2800 € *
Available: 20 pcs.
Available in 5 Days: 167 pcs.
Leadtime: 22 Weeks **
Total Price:
14.28 € *
Price list
Quantity
Price per unit*
1 pcs.
14.2800 €
10 pcs.
13.1376 €
50 pcs.
11.9595 €
100 pcs.
10.7576 €
*incl. VAT plus shipping costs
**Subject to prior sale

Circular connector series 400, type Bulgin PX04.

With flexible cable connection; Contact resistance: max. 5.0 mohm. Material: polyamide to UL 94 V-0. Degree of protection: IP 68. Operating temperatures: –40 to +80 °C. Contacts are available on separate order.

Connector housings with male contact insert, type PX0410.

Technical attributes (type, number of poles, rated voltage/current, cable diameter): PX0410/04P/4550, 4-pole, 125 V AC/DC/5.0 A, 4.5 to 5.0 mm

Technical specifications
Ausführung Stecker
Bestückung unbestückt
Gehäusematerial PA
Kabeldurchmesser 4,5 bis 5 mm
Kontaktanschluss Crimpanschluss
Montage Kabelmontage
Orientierung gerade
Polzahl 4-polig
Verriegelung Schraubverriegelung
Logistics
Ursprungsland TN
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
