PX0410/08P/6065 | BULGIN

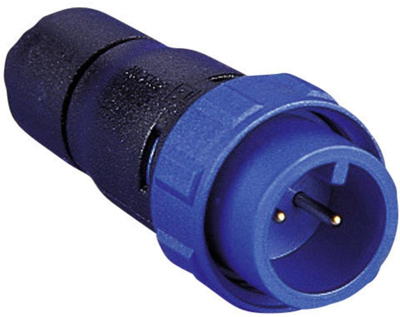

Plug, 8 pole, crimp connection, screw locking, straight, PX0410/08P/6065
Unit Price (€ / pc.)
13.2328 € *
Available: 0 pcs.
Available in 5 Days: 1,562 pcs.
Leadtime: 22 Weeks **
Total Price:
13.23 € *
Price list
Quantity
Price per unit*
1 pcs.
13.2328 €
10 pcs.
12.1737 €
50 pcs.
11.0789 €
100 pcs.
9.9722 €
*incl. VAT plus shipping costs
**Subject to prior sale
Circular connector series 400, type Bulgin PX04.
With flexible cable connection; Contact resistance: max. 5.0 mohm. Material: polyamide to UL 94 V-0. Degree of protection: IP 68. Operating temperatures: –40 to +80 °C. Contacts are available on separate order.
Connector housings with male contact insert, type PX0410.
Technical attributes (type, number of poles, rated voltage/current, cable diameter): PX0410/08P/6065, 8-pole, 125 V AC/DC/5.0 A, 6.0 to 6.5 mm
Technical specifications
| Version | Stecker | |
| Additional parts | unbestückt | |
| Shell Material | PA | |
| Cable diameter | 6 bis 6,5 mm | |
| Contact connection | Crimpanschluss | |
| Assembly | Kabelmontage | |
| Orientation | gerade | |
| Pin number | 8-polig | |
| Type of locking | Schraubverriegelung |
Download
Logistics
| Country of origin | TN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
