PX0411/04P/4550 | BULGIN

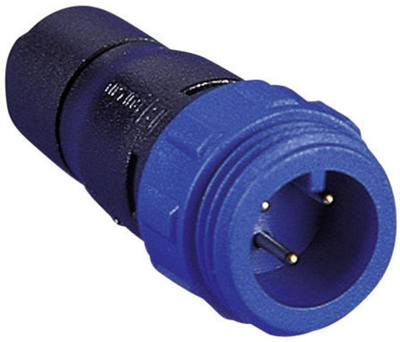

Plug, 4 pole, solder/crimp connection, screw locking, straight, PX0411/04P/4550
Unit Price (€ / pc.)
13.1614 € *
Available: 0 pcs.
Available in 5 Days: 399 pcs.
Leadtime: 18 Weeks **
Total Price:
13.16 € *
Price list
Quantity
Price per unit*
1 pcs.
13.1614 €
10 pcs.
12.1142 €
50 pcs.
11.0194 €
100 pcs.
9.9127 €
*incl. VAT plus shipping costs
**Subject to prior sale
Circular connector series 400, type Bulgin PX04.
With flexible cable connection; Contact resistance: max. 5.0 mohm. Material: polyamide to UL 94 V-0. Degree of protection: IP 68. Operating temperatures: –40 to +80 °C. Contacts are available on separate order.
Cable socket housings with male contact insert, type PX0411.
Technical attributes (type, number of poles, rated voltage/current, cable diameter): PX0411/04P/4550, 4-pole, 125 V AC/DC/5.0 A, 4.5 to 5.0 mm
Technical specifications
| Version | plug | |
| Additional parts | unequipped | |
| Shell Material | PA | |
| Cable diameter | 4 to 4.5 mm | |
| Contact connection | solder/crimp connection | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 4 pole | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | TN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
