PX0412/04S | BULGIN

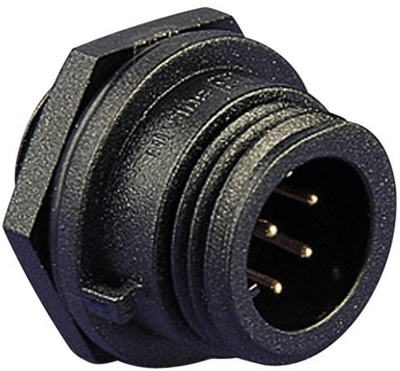

Panel socket, 4 pole, solder/crimp connection, screw locking, straight, PX0412/04S
Unit Price (€ / pc.)
9.1630 € *
Available: 0 pcs.
Available in 5 Days: 446 pcs.
Leadtime: 22 Weeks **
Total Price:
9.16 € *
Price list
Quantity
Price per unit*
1 pcs.
9.1630 €
10 pcs.
8.4252 €
50 pcs.
7.6755 €
100 pcs.
6.9020 €
*incl. VAT plus shipping costs
**Subject to prior sale
Circular connector series 400, type Bulgin PX04.
With flexible cable connection; Contact resistance: max. 5.0 mohm. Material: polyamide to UL 94 V-0. Degree of protection: IP 68. Operating temperatures: –40 to +80 °C. Contacts are available on separate order.
Front panel connector housings with female contact insert, type PX0412.
Technical attributes (type, number of poles, rated voltage/current, cable diameter): PX0412/04S, 4–pole, 125 V AC/DC/5.0 A
Technical specifications
| Ausführung | Einbaubuchse | |
| Bestückung | unbestückt | |
| Gehäusematerial | PA | |
| Kontaktanschluss | Löt-/Crimpanschluss | |
| Montage | Leiterplattenmontage | |
| Orientierung | gerade | |
| Polzahl | 4-polig | |
| Verriegelung | Schraubverriegelung |
Download
Logistics
| Ursprungsland | TN |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
