PX0413/03P/PC | BULGIN

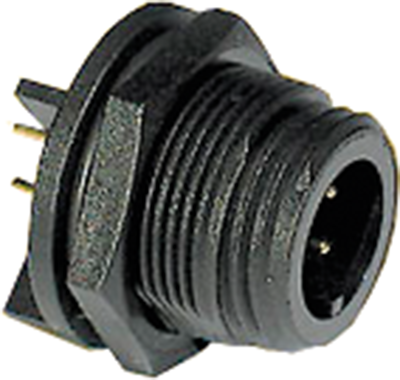

Panel plug, 3 pole, solder pin, screw locking, straight, PX0413/03P/PC
Unit Price (€ / pc.)
13.3994 € *
Available: 0 pcs.
Available in 5 Days: 1,153 pcs.
Leadtime: 18 Weeks **
Total Price:
13.40 € *
Price list
Quantity
Price per unit*
1 pcs.
13.3994 €
10 pcs.
12.3284 €
50 pcs.
11.2217 €
100 pcs.
10.0912 €
*incl. VAT plus shipping costs
**Subject to prior sale
Circular connector series 400, type Bulgin PX04.
With flexible cable connection; Contact resistance: max. 5.0 mohm. Material: polyamide to UL 94 V-0. Degree of protection: IP 68. Operating temperatures: –40 to +80 °C. Contacts are available on separate order.
For PCB mounting, type PX0413.
Connector housings with male insert for PCB mounting, type PX0413.
Technical attributes (type, number of poles, rated voltage/current, cable diameter): PX0413/03P/PC, 3–pole, 250 V AC/DC/8.0 A
Technical specifications
| Version | panel plug | |
| Additional parts | unequipped | |
| Shell Material | PA | |
| Contact connection | solder pin | |
| contact surface | gold-plated | |
| Assembly | PCB mounting | |
| Orientation | straight | |
| Pin number | 3 pole | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | TN |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
