PX0413/12P/PC | BULGIN

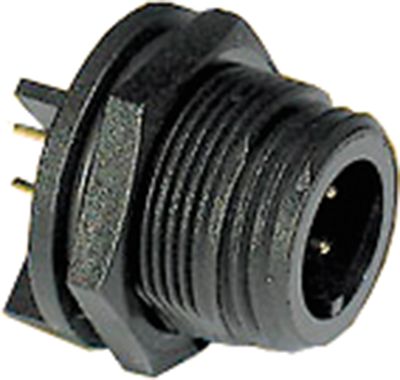

Panel plug, 12 pole, solder pin, screw locking, straight, PX0413/12P/PC
Unit Price (€ / pc.)
26.7393 € *
Available: 0 pcs.
Available in 5 Days: 674 pcs.
Leadtime: 22 Weeks **
Total Price:
213.91 € *
Price list
Quantity
Price per unit*
8 pcs.
26.7393 €
19 pcs.
26.2395 €
*incl. VAT plus shipping costs
**Subject to prior sale
Circular connector series 400, type Bulgin PX04.
With flexible cable connection; Contact resistance: max. 5.0 mohm. Material: polyamide to UL 94 V-0. Degree of protection: IP 68. Operating temperatures: –40 to +80 °C. Contacts are available on separate order.
For PCB mounting, type PX0413.
Connector housings with male insert for PCB mounting, type PX0413.
Technical attributes (type, number of poles, rated voltage/current, cable diameter): PX0413/12P/PC, 12–pole, 50 V AC/DC/1.0 A
Technical specifications
| Ausführung | Einbaustecker | |
| Bestückung | bestückt | |
| Gehäusematerial | PA | |
| Kontaktanschluss | Einlötstift | |
| Kontaktoberfläche | vergoldet | |
| Montage | Leiterplattenmontage | |
| Orientierung | gerade | |
| Polzahl | 12-polig | |
| Verriegelung | Schraubverriegelung |
Download
Logistics
| Ursprungsland | TN |
| Zolltarifnummer | 85366930 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
