PX0911/04/P | BULGIN

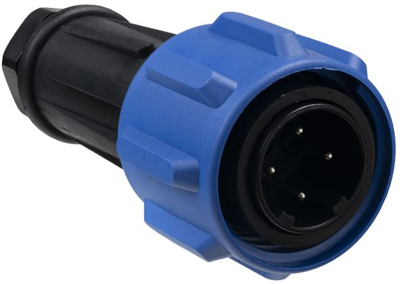

Plug, 4 pole, screw connection, screw locking, straight, PX0911/04/P
Unit Price (€ / pc.)
45.6960 € *
Available: 0 pcs.
Available in 5 Days: 130 pcs.
Leadtime: 22 Weeks **
Total Price:
45.70 € *
Price list
Quantity
Price per unit*
1 pcs.
45.6960 €
10 pcs.
43.4112 €
25 pcs.
40.8051 €
50 pcs.
38.3537 €
*incl. VAT plus shipping costs
**Subject to prior sale
Circular connector series 900, type Bulgin PX09.
With screw terminals; Contact resistance: max. 10 mohm. Material: polyamide to UL 94 V-0. Contacts: nickel-plated brass. Degree of protection: IP 68. Operating temperatures: –40 to +85 °C. Certifications: CSA (rated current 25 to 30 A), UL, VDE, CCC (rated current 10 to 32 A).
Connectors with male contacts, type PX0911.
Technical attributes (type, number of poles, rated voltage/current): PX0911/04/P, 4-pole, 600 V AC/DC/32 A
Technical specifications
| Version | Stecker | |
| Cable cross-section | 2,5-4,0 mm² | |
| Pin number | 4-polig | |
| Orientation | gerade | |
| Contact connection | Schraubanschluss | |
| Type of locking | Schraubverriegelung | |
| Cable diameter | 7 bis 13 mm | |
| Assembly | Kabelmontage | |
| Additional parts | bestückt | |
| contact surface | vernickelt | |
| Shell Material | PA |
Download
Logistics
| Country of origin | TN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
