PXM6010/03P/ST/0507 | BULGIN

Plug, 3 pole, screw connection, push pull, straight, PXM6010/03P/ST/0507

Order No.: 67F5701
EAN: 4099889731668
MPN:
PXM6010/03P/ST/0507
PXM6010/03P/ST/0507 BULGIN Other Circular Connectors

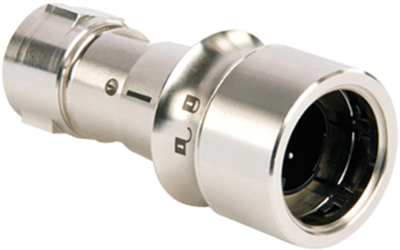

Image may differ
Unit Price (€ / pc.)
50.1585 € *
Available: 0 pcs.
Available in 5 Days: 4 pcs.
Leadtime: 22 Weeks **
Total Price:
50.16 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
50.1585 €

Connectors with male contacts, type PXM6010.

Metal Version, with push/pull lock and 30° twist lock against unintentional disconnection, water-proof and dust-proof to EN 60529.

Number of poles: 3-pole

Rated voltage: 277 V AC/DC

Rated current: 12 A

Connections: Screw termination

Degree of protection: IP 68

Insulation resistance: min. 10 Mohm at 500 V AC/DC

Contact resistance: max. 10 mohm

Material: PC/PBT, halogen-free

Inflammability class: UL 94 V-0

Contacts: nickel-plated brass

Housing: nickel-plated brass

Seals: Silicon

Operating temperatures: - 40 to +120 °C

Cable entry: 4.0 to 10 mm

Certifications: CSA, UL

Type: PXM6010/03P/ST/0507

Technical specifications
Ausführung Stecker
Bestückung bestückt
Gehäusematerial Messing
Kabeldurchmesser 5 bis 7 mm
Kontaktanschluss Schraubanschluss
Kontaktoberfläche vernickelt
Leiterquerschnitt 1,5 mm²
Montage Kabelmontage
Orientierung gerade
Polzahl 3-polig
Verriegelung Push-Pull
Logistics
Ursprungsland CN
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
