PXM7012/10S/CR | BULGIN

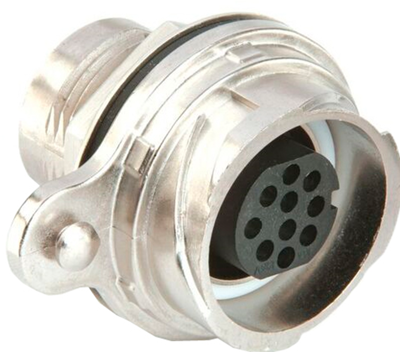

Panel plug, 10 pole, crimp connection, screw locking, straight, PXM7012/10S/CR
Unit Price (€ / pc.)
34.6409 € *
Available: 0 pcs.
Available in 5 Days: 126 pcs.
Leadtime: 22 Weeks **
Total Price:
34.64 € *
Price list
Quantity
Price per unit*
1 pcs.
34.6409 €
10 pcs.
32.2133 €
25 pcs.
29.6429 €
50 pcs.
26.9773 €
*incl. VAT plus shipping costs
**Subject to prior sale
Flex cable connectors series Buccaneer 7000, type Bulgin PXP70..
Metal version, type PXM.
Front panel mount connectors, socket contacts, type PXM7012..
operating voltage: 600 V.
Operating current: 25 A.
Contact resistance: max. 10 Mohm.
Material: PC/PBT, halogen-free.
Inflammability class: UL 94 V-0.
Contacts: nickel-plated brass.
Degree of protection mated state: IP 66, IP 68, IP 69K.
Certifications: UL, cULus, VDE, CCC.
Operating temperatures: - 40 to +120 °C.
Table index: type, number of poles, contact gender, cable diameter, color.
PXM7012/10S/CR, 10-pole, crimp termination
Technical specifications
| Version | Einbaustecker | |
| Additional parts | unbestückt | |
| Shell Material | Messing | |
| Contact connection | Crimpanschluss | |
| Assembly | Leiterplattenmontage | |
| Orientation | gerade | |
| Pin number | 10-polig | |
| Type of locking | Schraubverriegelung |
Download
Logistics
| Country of origin | TN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
