PXP6010/02P/ST/0507 | BULGIN

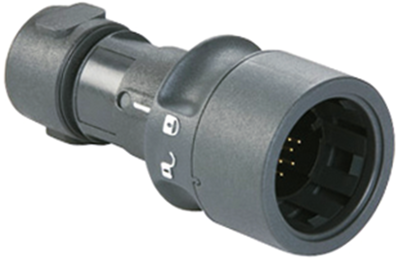

Plug, 2 pole, screw connection, push pull, straight, PXP6010/02P/ST/0507

Order No.: 67F5733
EAN: 4099889731958
MPN:
PXP6010/02P/ST/0507
PXP6010/02P/ST/0507 BULGIN Other Circular Connectors
Image may differ
Unit Price (€ / pc.)
18.7663 € *
Available: 0 pcs.
Available in 5 Days: 221 pcs.
Leadtime: 22 Weeks **
Total Price:
206.43 € *
Price list
Quantity
Price per unit*
11 pcs.
18.7663 €
35 pcs.
16.1840 €
*incl. VAT plus shipping costs
**Subject to prior sale

Circular connector for harsh environments, series 6000, type Bulgin PXP6.

With push/pull lock and 30° twist lock against unintentional disconnection, water-proof and dust-proof to EN 60529; Degree of protection: IP 68. Insulation resistance: min. 10 Mohm at 500 V AC/DC. Contact resistance: max. 10 mohm. Material: PC/PBT, halogen-free. Inflammability class: UL 94 V-0. Contacts: nickel-plated brass (2 A gold-plated). Seals: silicon. Operating temperatures: - 40 to +120 °C. Cable entry: 4.0 to 10 mm. Certifications: CSA, UL.

Connectors with male contacts, type PXP6010.

Type: PXP6010/02P/ST/0507, 2-pole, 277 V AC/DC/16 A, screw termination

Technical specifications
Ausführung Stecker
Bestückung bestückt
Gehäusematerial PBT
Kabeldurchmesser 4 bis 10 mm
Kontaktanschluss Schraubanschluss
Kontaktoberfläche vernickelt
Leiterquerschnitt 1,5 mm²
Montage Kabelmontage
Orientierung gerade
Polzahl 2-polig
Verriegelung Push-Pull
Logistics
Ursprungsland CN
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
