PXP6011/16S/CR/0910 | BULGIN

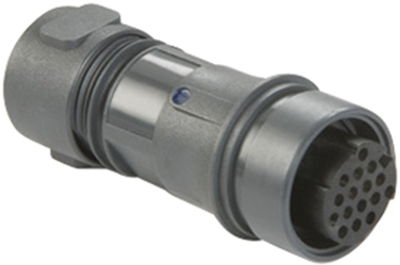

Jack, 16 pole, crimp connection, push pull, straight, PXP6011/16S/CR/0910
Unit Price (€ / pc.)
17.5525 € *
Available: 0 pcs.
Available in 5 Days: 38 pcs.
Leadtime: 22 Weeks **
Total Price:
17.55 € *
Price list
Quantity
Price per unit*
12 pcs.
17.5525 €
30 pcs.
10.0793 €
*incl. VAT plus shipping costs
**Subject to prior sale
Circular connector for harsh environments, series 6000, type Bulgin PXP6.
With push/pull lock and 30° twist lock against unintentional disconnection, water-proof and dust-proof to EN 60529; Degree of protection: IP 68. Insulation resistance: min. 10 Mohm at 500 V AC/DC. Contact resistance: max. 10 mohm. Material: PC/PBT, halogen-free. Inflammability class: UL 94 V-0. Contacts: nickel-plated brass (2 A gold-plated). Seals: silicon. Operating temperatures: - 40 to +120 °C. Cable entry: 4.0 to 10 mm. Certifications: CSA, UL.
Flex in-line cable connector, socket contacts, type PXP6011.
Type: PXP6011/16S/CR/0910, 16-pole, 60 V AC/DC/3.0 A, crimp.
Technical specifications
| Ausführung | Kupplung | |
| Bestückung | unbestückt | |
| Gehäusematerial | PBT | |
| Kabeldurchmesser | 4 bis 10 mm | |
| Kontaktanschluss | Crimpanschluss | |
| Montage | Kabelmontage | |
| Orientierung | gerade | |
| Polzahl | 16-polig | |
| Verriegelung | Push-Pull |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
