PXP6012/16S/CR | BULGIN

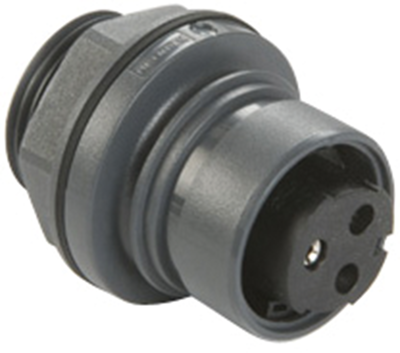

Panel socket, 16 pole, crimp connection, push pull, straight, PXP6012/16S/CR
Unit Price (€ / pc.)
9.5795 € *
Available: 0 pcs.
Available in 5 Days: 61 pcs.
Leadtime: 22 Weeks **
Total Price:
9.58 € *
Price list
Quantity
Price per unit*
21 pcs.
9.5795 €
40 pcs.
7.4375 €
*incl. VAT plus shipping costs
**Subject to prior sale
Circular connector for harsh environments, series 6000, type Bulgin PXP6.
With push/pull lock and 30° twist lock against unintentional disconnection, water-proof and dust-proof to EN 60529; Degree of protection: IP 68. Insulation resistance: min. 10 Mohm at 500 V AC/DC. Contact resistance: max. 10 mohm. Material: PC/PBT, halogen-free. Inflammability class: UL 94 V-0. Contacts: nickel-plated brass (2 A gold-plated). Seals: silicon. Operating temperatures: - 40 to +120 °C. Cable entry: 4.0 to 10 mm. Certifications: CSA, UL.
Connectors, front panel mount, female contacts, for PXP6010, type PXP6012.
Technical attributes (type, number of poles, rated voltage/current, connections): PXP6012/16S/CR, 16-pole, 60 V AC/DC/3.0 A, crimp terminals
Technical specifications
| Ausführung | Flanschbuchse | |
| Bestückung | unbestückt | |
| Gehäusematerial | PBT | |
| Kontaktanschluss | Crimpanschluss | |
| Kontaktoberfläche | vergoldet | |
| Montage | Leiterplattenmontage | |
| Orientierung | gerade | |
| Polzahl | 16-polig | |
| Verriegelung | Push-Pull |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
