PXP7010/03S/ST/1315 | BULGIN

Plug, 3 pole, screw connection, screw locking, straight, PXP7010/03S/ST/1315

Order No.: 70F5732
EAN: 4099889739015
MPN:
PXP7010/03S/ST/1315
PXP7010/03S/ST/1315 BULGIN Other Circular Connectors

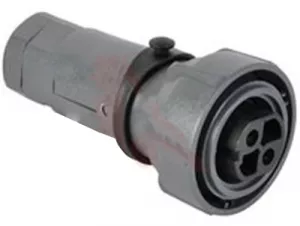

Image may differ
Unit Price (€ / pc.)
24.6925 € *
Available: 0 pcs.
Available in 5 Days: 51 pcs.
Leadtime: 22 Weeks **
Total Price:
222.23 € *
Price list
Quantity
Price per unit*
9 pcs.
24.6925 €
20 pcs.
21.6937 €
*incl. VAT plus shipping costs
**Subject to prior sale

Flex cable connectors series Buccaneer 7000, type Bulgin PXP70.

Operating voltage: 600 V. Operating current: 25 A. Contact resistance: max. 10 Mohm. Material: PC/PBT, halogen-free. Inflammability class: UL 94 V-0. Contacts: nickel-plated brass. Degree of protection mated state: IP 66, IP 68, IP 69K. Certifications: UL, cULus, VDE, CCC. Operating temperatures: - 40 to +120 °C.

Flex cable connectors, socket contacts, type PXP7010.

Technical attributes (type, number of poles, contact gender, cable diameter, color): PXP7010/10P/CR/0911, 10-pole, crimp termination, 9.0 to 11 mm, black

Technical specifications
Ausführung Stecker
Bestückung bestückt
Gehäusematerial PBT
Kabeldurchmesser 11 bis 13 mm
Kontaktanschluss Schraubanschluss
Kontaktoberfläche vernickelt
Leiterquerschnitt 6,0 mm²
Montage Kabelmontage
Orientierung gerade
Polzahl 3-polig
Verriegelung Schraubverriegelung
Logistics
Ursprungsland TN
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
