PXP7011/32P/CR/0911 | BULGIN

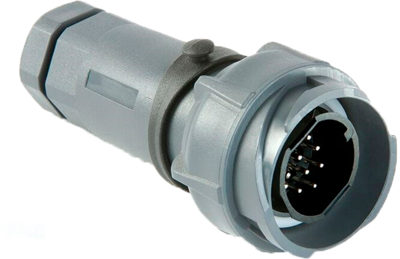

Jack, 32 pole, crimp connection, screw locking, straight, PXP7011/32P/CR/0911

Order No.: 70F5747
EAN: 4099889739169
MPN:
PXP7011/32P/CR/0911
PXP7011/32P/CR/0911 BULGIN Other Circular Connectors
Image may differ
Unit Price (€ / pc.)
25.8587 € *
Available: 0 pcs.
Leadtime: 22 Weeks **
Total Price:
25.86 € *
Price list
Quantity
Price per unit*
1 pcs.
25.8587 €
10 pcs.
23.7881 €
25 pcs.
21.8841 €
50 pcs.
19.9206 €
*incl. VAT plus shipping costs
**Subject to prior sale

Flex cable connectors series Buccaneer 7000, type Bulgin PXP70..

Flex in-line connectors, pin contacts, type PXP7011..

operating voltage: 600 V.

Operating current: 25 A.

Contact resistance: max. 10 Mohm.

Material: PC/PBT, halogen-free.

Inflammability class: UL 94 V-0.

Contacts: nickel-plated brass.

Degree of protection mated state: IP 66, IP 68, IP 69K.

Certifications: UL, cULus, VDE, CCC.

Operating temperatures: - 40 to +120 °C.

Table index: type, number of poles, contact gender, cable diameter, color.

PXP7011/32P/CR/0911, 32-pole, crimp termination, 9,0 to 11 mm, black

Technical specifications
Ausführung Kupplung
Bestückung unbestückt
Gehäusematerial PBT
Kabeldurchmesser 9 bis 11 mm
Kontaktanschluss Crimpanschluss
Montage Kabelmontage
Orientierung gerade
Polzahl 32-polig
Verriegelung Schraubverriegelung
Logistics
Ursprungsland TN
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
