SA3229 | BULGIN

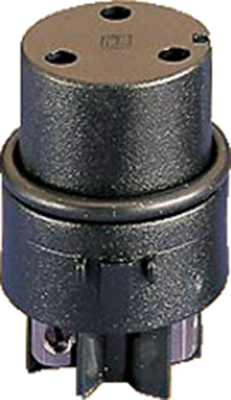

Socket contact insert, 3 pole, screw connection, screw locking, straight, SA3229
Unit Price (€ / pc.)
12.1380 € *
Available: 40 pcs.
Available in 5 Days: 145 pcs.
Leadtime: 22 Weeks **
Total Price:
12.14 € *
Price list
Quantity
Price per unit*
1 pcs.
12.1380 €
10 pcs.
11.1622 €
25 pcs.
10.2697 €
50 pcs.
9.3415 €
*incl. VAT plus shipping costs
**Subject to prior sale
Miniature circular connector, type Bulgin PX08.
Degree of protection: IP 68. Housing: polyamide to UL 94 V-0. Operating temperatures: –20 to +70 °C. Contact inserts are available on separate order.
Contact inserts for miniature connectors, type SA3.
For screw terminals Rated voltage: 250 VAC. Contact resistance: max. 5.0 mohm. Contacts: nickel-plated brass. Operating temperatures: –20 to +70 °C. type, poles, rated current.
Socket inserts.
Technical attributes (type version, cable entry): SA3229, 3–pole, 10 A
Technical specifications
| Version | Buchsen-Kontakteinsatz | |
| Additional parts | bestückt | |
| Shell Material | PA | |
| Contact connection | Schraubanschluss | |
| contact surface | vernickelt | |
| Orientation | gerade | |
| Pin number | 3-polig | |
| Type of locking | Schraubverriegelung |
Download
Logistics
| Country of origin | TN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
