SA3230 | BULGIN

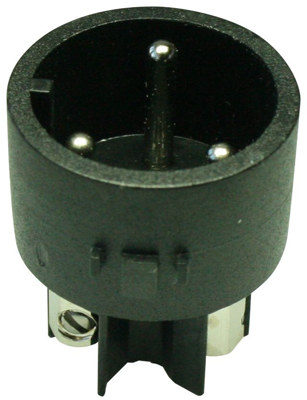

Plug contact insert, 3 pole, screw connection, screw locking, straight, SA3230
Unit Price (€ / pc.)
9.6390 € *
Available: 0 pcs.
Available in 5 Days: 1,244 pcs.
Leadtime: 18 Weeks **
Total Price:
9.64 € *
Price list
Quantity
Price per unit*
1 pcs.
9.6390 €
10 pcs.
8.8655 €
50 pcs.
8.0682 €
100 pcs.
7.2590 €
*incl. VAT plus shipping costs
**Subject to prior sale
Miniature circular connector, type Bulgin PX08.
Degree of protection: IP 68. Housing: polyamide to UL 94 V-0. Operating temperatures: –20 to +70 °C. Contact inserts are available on separate order.
Contact inserts for miniature connectors, type SA3.
For screw terminals Rated voltage: 250 VAC. Contact resistance: max. 5.0 mohm. Contacts: nickel-plated brass. Operating temperatures: –20 to +70 °C. type, poles, rated current.
Plug inserts.
Technical attributes (type version, cable entry): SA3230, 3–pole, 10 A
Technical specifications
| Version | plug contact insert | |
| Additional parts | equipped | |
| Shell Material | PA | |
| Contact connection | screw connection | |
| contact surface | nickel-plated | |
| Orientation | straight | |
| Pin number | 3 pole | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | TN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
