SA3242 | BULGIN

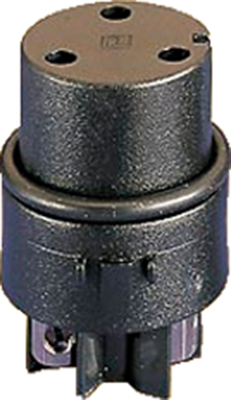

Socket contact insert, 4 pole, screw connection, screw locking, straight, SA3242
Unit Price (€ / pc.)
13.8873 € *
Available: 0 pcs.
Available in 5 Days: 340 pcs.
Leadtime: 22 Weeks **
Total Price:
13.89 € *
Price list
Quantity
Price per unit*
10 pcs.
13.8873 €
45 pcs.
11.9833 €
*incl. VAT plus shipping costs
**Subject to prior sale
Miniature circular connector, type Bulgin PX08.
Degree of protection: IP 68. Housing: polyamide to UL 94 V-0. Operating temperatures: –20 to +70 °C. Contact inserts are available on separate order.
Contact inserts for miniature connectors, type SA3.
For screw terminals Rated voltage: 250 VAC. Contact resistance: max. 5.0 mohm. Contacts: nickel-plated brass. Operating temperatures: –20 to +70 °C. type, poles, rated current.
Socket inserts.
Technical attributes (type version, cable entry): SA3242, 4–pole, 6.0 A
Technical specifications
| Ausführung | Buchsen-Kontakteinsatz | |
| Bestückung | bestückt | |
| Gehäusematerial | PA | |
| Kontaktanschluss | Schraubanschluss | |
| Kontaktoberfläche | vernickelt | |
| Orientierung | gerade | |
| Polzahl | 4-polig | |
| Verriegelung | Schraubverriegelung |
Download
Logistics
| Ursprungsland | TN |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
