MP0038/3 | BULGIN

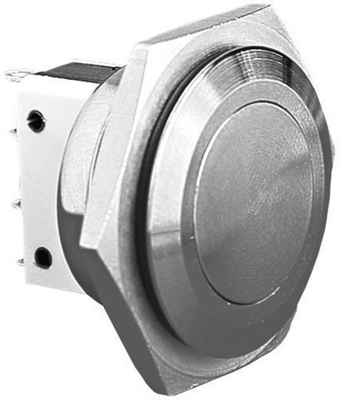

Pushbutton, 1 pole, silver, unlit , 5 A/250 V, mounting Ø 25.8 mm, IP66, MP0038/3
Vandal resistant pushbutton, not illuminated, type Bulgin MP0038.
Single-pole NO + NC, solder connection, made of stainless steel; Panel mount diameter: 25.8 mm. Switching voltage: 250 VAC/28 VDC. Switching current: 5.0 A/2.0 A. Contact resistance: max. 10 mohm. Actuating force: 12.5 N. Degree of protection: IP 66. Operating temperatures: –20 to +70 °C.
Technical attributes (type, profile): MP0038/3, domed
Connection | solder connection | |
Design | round | |
Printed | No | |
illuminated | No | |

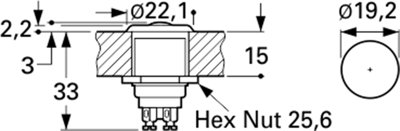

Installation diameter | 25.8 mm | |
Actuator colour | silver | |
contact surface | silver-plated | |
Pin number | 1 pole | |
Latching switching function | groping | |
Breaking capacity | 5 A/250 V | |
Protection class | IP66 | |
Vandal-proof | Yes |
Country of origin | TN |
Customs tariff number | 85365011 |
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | No |
Substance description | Lead |
