PXMBNI08RPF04AFL001 | BULGIN
Sensor actuator cable, M8-flange socket, straight to open end, 4 pole, 0.1 m, brass, black, 3 A, PXMBNI08RPF04AFL001
Unit Price (€ / pc.)
40.9717 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
40.97 € *
Price list
Quantity
Price per unit*
1 pcs.
40.9717 €
10 pcs.
38.5084 €
25 pcs.
35.8190 €
50 pcs.
32.9511 €
*incl. VAT plus shipping costs
**Subject to prior sale

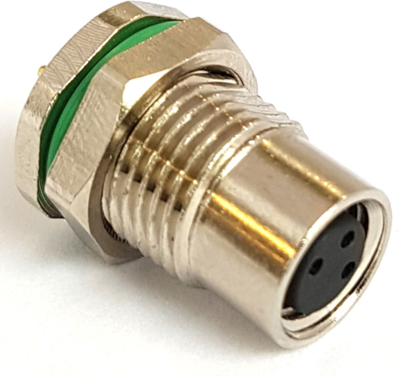

M8 Rear Panel Mounting Female, PXMBNI08RPF04AFL001, Bulgin
PXMBNI08RPF04AFL001 is a circular connector with screw lock coupling. This product is mechanically and chemically robust, easy to install, minimise downtime and help to increase production efficiency.
Features
- Environmental protection rating IP67
- Flying lead termination
- 4 Contacts
- Straight cable connectors
Technical specifications
| Connection (1) | M8-flange socket, straight | |
| Connection (2) | open end | |
| Colour | black | |
| Cable length | 0.1 m | |
| LED display | No | |
| Material | brass | |
| max. Voltage | 30 V | |
| Rated current | 3 A | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
