PXPTPU12FBF12ACL010PUR | BULGIN
Sensor actuator cable, M12-cable socket, straight to open end, 12 pole, 1 m, PUR, black, 1.5 A, PXPTPU12FBF12ACL010PUR
Unit Price (€ / pc.)
54.5377 € *
Available: 0 pcs.
Available in 5 Days: 60 pcs.
Leadtime: 22 Weeks **

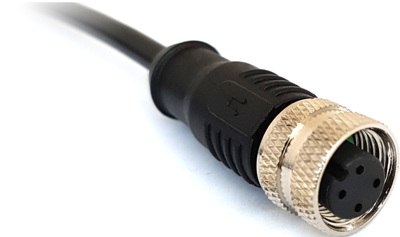

M12 Flex Body Female, PXPTPU12FBF12ACL010PUR, Bulgin
PXPTPU12FBF12ACL010PUR is established as one of the most reliable and efficient connection. With a small footprint, extremely low failure rate and high performance capabilities, this range is ideal not only for sensor connections but also for a variety of fieldbus systems. This circular connector is easy to use and extremely reliable solutions for sensor/actuator connectivity in industrial automation and control applications.
Features
- Reliable industry standard screw locking mechanism
- IP67 degree of protection
- Overmold Flex Body
- 12 Contacts
- Straight cable connectors
Technical specifications
| Anschluss (1) | M12-Kabeldose, gerade | |
| Anschluss (2) | offenes Ende | |
| Farbe | schwarz | |
| Kabellänge | 1 m | |
| LED-Anzeige | No | |
| Material | PUR | |
| max. Spannung | 30 V | |
| Nennstrom | 1.5 A | |
| Polzahl | 12-polig | |
| Schutzart (IP) | IP67 |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
