BYB-4-07F5004 | by.B
Insulated ring cable lug, 0.5-1.5 mm², AWG 22 to 16, 6.4 mm, red, BYB-4-07F5004
Order No.: 07F5004
EAN: 4099891983062
MPN:
BYB-4-07F5004
Unit Price (€ / pc.)
0.1404 € *
Available: 0 pcs.
Next delivery: 1,000 pcs. on 2025-05-06
Leadtime: 4 Weeks **
Total Price:
1.40 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1404 €
100 pcs.
0.1238 €
500 pcs.
0.1119 €
1000 pcs.
0.1035 €
5000 pcs.
0.0952 €
*incl. VAT plus shipping costs
**Subject to prior sale

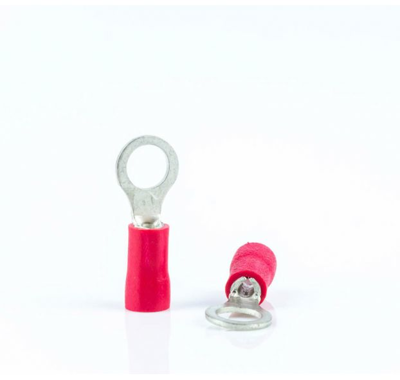

Ring cable lugs, BYB-4-07F5004, by.B
Ring cable lugs, Copper, tin-plated, 0,5 to 1,5 mm², 27 mm, Hole-Ø 6,4 mm, red.
Technical specifications
| Version | Ringkabelschuh | |
| AWG cross-section | AWG 22 bis 16 | |
| Colour | rot | |
| Material Insulation | PVC | |
| Isolated | Yes | |
| Cable cross-section | 0,5-1,5 mm² | |
| Hole diameter | 6.4 mm | |
| Material | Kupfer, verzinnt | |
| max. operating temperature | 75 °C |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
| Original Packaging | Beutel mit 100 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
