BYB-5-92F710 | by.B
PVC control line LifYDY 8 x 0.05 mm², shielded, black, BYB-5-92F710
Unit Price (€ / mtr.)
2.6299 € *
Available: 759 mtr.
Leadtime: On Request **
Total Price:
2.63 € *
Price list
Quantity
Price per unit*
1 mtr.
2.6299 €
10 mtr.
2.3324 €
100 mtr.
2.0230 €
500 mtr.
1.8683 €
1000 mtr.
1.7255 €
*incl. VAT plus shipping costs
**Subject to prior sale

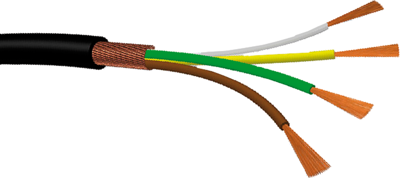

Ultra-flexible miniature control cables, shielded, type LifYDY.
For applications demanding cables with highest flexibility, immunity to interference and small outer diameters
Cross-section 0.05 mm².
Technical specifications
| Core insulation material | PVC | |
| Core colour sequence | DIN 47100 | |
| Number of cores | 8 | |
| Version | control line | |
| Outer diameter | 3.7 mm | |
| Colour | black | |
| Cable material | copper, bright | |
| Cable cross-section | 0.05 mm² | |
| Material | PVC | |
| Rated voltage | 100 V | |
| Test voltage | 500 V | |
| Shielding | shielded | |
| Temperature range (active) | -5 °C to 70 °C | |
| Temperature range (unmoved) | -20 °C to 70 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444995 |
| Original Packaging | Ring with 100 meters |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
