BYB-5-92F430 | by.B
PVC-switching wire, Yv, red/blue, outer Ø 1.4 mm, BYB-5-92F430
Unit Price (€ / pck.)
59.1192 € *
Available: 4 pck.
Leadtime: On Request **
Total Price:
59.12 € *
Price list
Quantity
Price per unit*
1 pck.
59.1192 €
5 pck.
54.1926 €
10 pck.
49.2660 €
25 pck.
42.6972 €
50 pck.
37.7706 €
*incl. VAT plus shipping costs
**Subject to prior sale

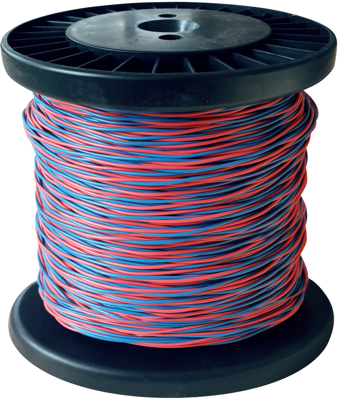

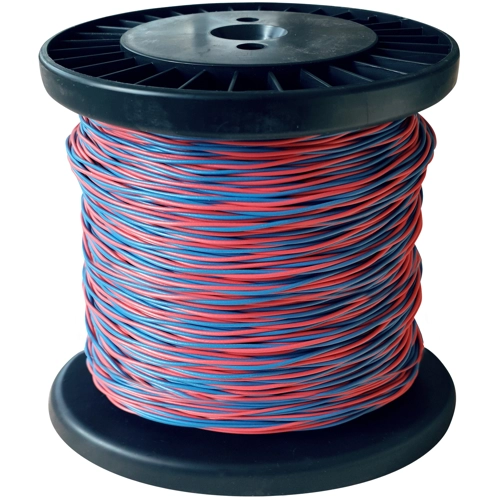

Stranded wire, YV 2X0,8/1,4 RED/BLUE, N.A.
Insulated wires type Yv with 2 cores, according to DIN VDE 0812. Solid copper conductor, tinned, 0.8 mm O.D., PVC insulation, self-extinguishing and flame retardant according to IEC 60332-2.
Technical specifications
| Aderisolationsmaterial | PVC | |
| Außendurchmesser | 1.4 mm | |
| Farbe | rot/blau | |
| Halogenfrei | No | |
| Leiteraufbau | 2 x 0,8 mm | |
| Leiterklasse | Kl.1 = eindrähtig | |
| Leitermaterial | Kupfer, verzinnt | |
| Nennspannung | 900 V | |
| Norm | In Anlehnung an DIN VDE 0812 | |
| Prüfspannung | 2.5 kV | |
| Temperaturbereich (bewegt) | -5 °C bis 70 °C | |
| Temperaturbereich (unbewegt) | -30 °C bis 70 °C |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
