BYB-5-92F448 | by.B

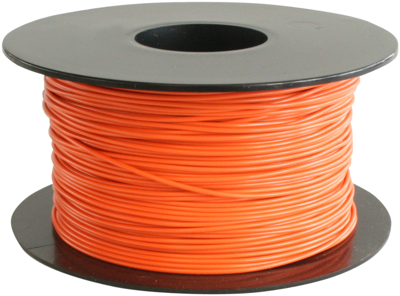

PVC-switching wire, Yv, orange, outer Ø 1.1 mm, BYB-5-92F448
Unit Price (€ / pck.)
20.8250 € *
Available: 2 pck.
Leadtime: 16 Weeks **
Total Price:
20.83 € *
Price list
Quantity
Price per unit*
1 pck.
20.8250 €
5 pck.
18.9805 €
10 pck.
17.3740 €
50 pck.
15.9460 €
100 pck.
14.8750 €
*incl. VAT plus shipping costs
**Subject to prior sale
Insulated hook-up wire, type Yv.
Based on DIN VDE 0812, tinned copper wire
Wire diameter 0.5 mm, outer diameter 1.1 mm.
Technical specifications
| Core insulation material | PVC | |
| Outer diameter | 1.1 mm | |
| Colour | orange | |
| Cable structure | 1 x 0.5 mm | |
| Conductor category | CL.1 = stranded | |
| Cable material | copper, tin-plated | |
| Rated voltage | 900 V | |
| Standard number | according to DIN VDE 0812 | |
| Test voltage | 2.5 kV | |
| Temperature range (active) | -10 °C to 70 °C | |
| Temperature range (unmoved) | -30 °C to 70 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
