BYB-5-92F532 | by.B

PVC-stranded wires kit colors á 5 meter), LiYv, 0.25 mm², black/red/blue/green/yellow, outer Ø 1.3 mm, BYB-5-92F532

Order No.: 92F532
EAN: 4099891974800
MPN:
BYB-5-92F532
Series: LiYv
BYB-5-92F532 by.B Insulated stranded wires
Image may differ
Unit Price (€ / pc.)
5.9500 € *
Available: 9 pcs.
Leadtime: 3 Weeks **
Total Price:
5.95 € *
Price list
Quantity
Price per unit*
1 pcs.
5.9500 €
5 pcs.
5.5097 €
10 pcs.
5.0575 €
25 pcs.
4.7600 €
50 pcs.
4.4625 €
*incl. VAT plus shipping costs
**Subject to prior sale

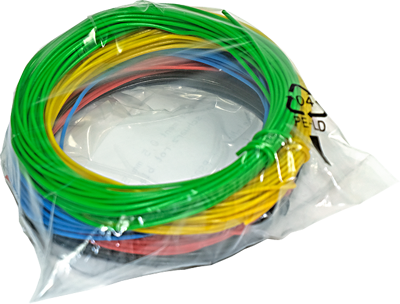

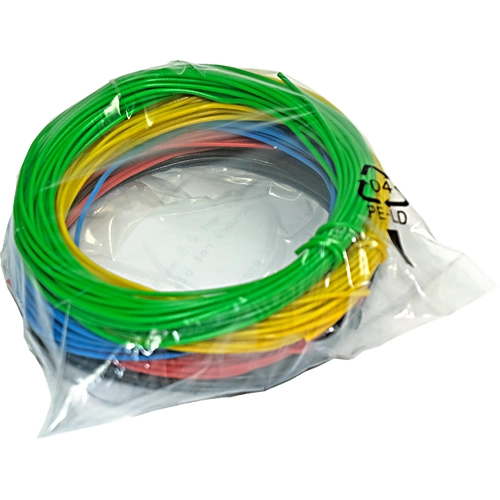

PVC wire assortment, BYB-5-92F532, by.B

Supplied in a bag of 5 colors, each 5 meters long. In accordance with DIN VDE 0812, flame-retardant in accordance with VDE 0482-332-2-2 / IEC 60332-2-2.

Technical specifications
Core insulation material PVC
Outer diameter 1.3 mm
Colour schwarz/rot/blau/grün/gelb
Halogen free No
Cable structure 14 x 0,15 mm
Cable material Kupfer, verzinnt
Cable cross-section 0,25 mm²
Rated voltage 900 V
Standard number VDE 0812
Test voltage 2.5 kV
Temperature range (active) -10 °C bis 70 °C
Temperature range (unmoved) -30 °C bis 70 °C
Logistics
Country of origin DE
Customs tariff number 85444995
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
