BYB-5-92F5934 | by.B

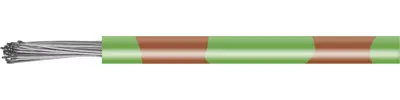

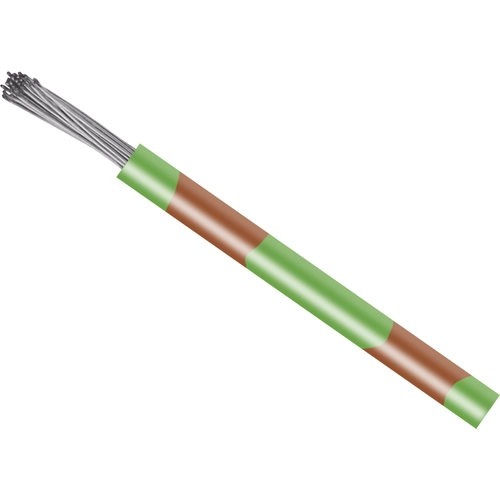

PVC-Stranded wire, high flexible, LiYv, 0.14 mm², green/brown, outer Ø 1.1 mm, BYB-5-92F5934
Unit Price (€ / pck.)
20.1348 € *
Available: 0 pck.
Leadtime: 10 Weeks **
Total Price:
20.13 € *
Price list
Quantity
Price per unit*
10 pck.
20.1348 €
50 pck.
17.8976 €
100 pck.
16.7790 €
250 pck.
15.6604 €
*incl. VAT plus shipping costs
**Subject to prior sale
PVC single core, LIYV 0,14/1,1 GN/BR, N.A.
The LIYV 0,14/1,1 GN/BR is a PVC insulated, flexible hook-up wire for the wiring of low-voltage systems, telecommunication devices and electronic modules within devices, racks and switchboards; not permitted for heavy current installations outside of appliances
Technical specifications
| Aderisolationsmaterial | PVC | |
| Außendurchmesser | 1.1 mm | |
| Farbe | grün/braun | |
| Halogenfrei | No | |
| Leiteraufbau | 18 x 0,1 mm | |
| Leiterklasse | Kl.5 = feindrähtig | |
| Leitermaterial | Kupfer, verzinnt | |
| Leiterquerschnitt | 0,14 mm² | |
| Nennspannung | 500 V | |
| Prüfspannung | 1.2 kV | |
| Temperaturbereich (bewegt) | -5 °C bis 70 °C | |
| Temperaturbereich (unbewegt) | -30 °C bis 70 °C |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
