BYB-5-92F5961 | by.B

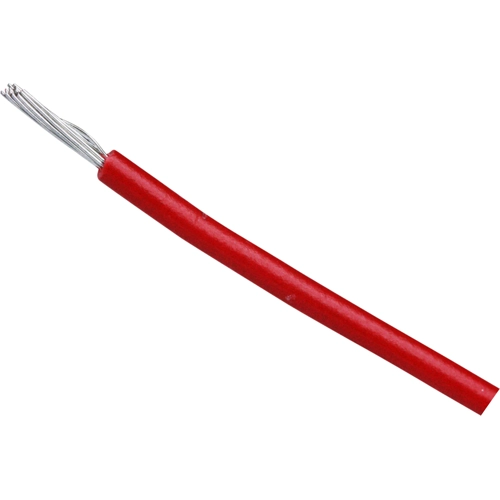

PVC-switching strand, LiYv-HT, 1.5 mm², red, outer Ø 2.9 mm, BYB-5-92F5961
Unit Price (€ / pck.)
62.9510 € *
Available: 1 pck.
Leadtime: On Request **
Total Price:
62.95 € *
Price list
Quantity
Price per unit*
1 pck.
62.9510 €
5 pck.
59.5000 €
10 pck.
57.2390 €
25 pck.
54.7400 €
50 pck.
52.3600 €
*incl. VAT plus shipping costs
**Subject to prior sale
Heat-resistant stranded hook-up wires, type LiYv-HT.
Tinned stranded copper wire, PVC insulation
Cross-section 1.5 mm², outer diameter 2.9 mm,.
Technical specifications
| Aderisolationsmaterial | PVC | |
| Außendurchmesser | 2.9 mm | |
| Farbe | rot | |
| Halogenfrei | No | |
| Leiteraufbau | 30 x 0,25 mm | |
| Leitermaterial | Kupfer, verzinnt | |
| Leiterquerschnitt | 1,5 mm² | |
| Nennspannung | 600 V | |
| Norm | VDE 0812 | |
| Prüfspannung | 2.5 kV | |
| Temperaturbereich (bewegt) | -10 °C bis 105 °C | |
| Temperaturbereich (unbewegt) | -30 °C bis 105 °C |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
