BYB-5-94F885 | by.B

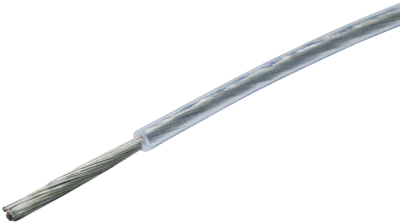

FEP-Stranded wire, high flexible, 2.5 mm², transparent, outer Ø 2.9 mm, BYB-5-94F885
Order No.: 94F885
EAN: 4099891187262
MPN:
BYB-5-94F885
FEP 2,50/2,9 TRANSPARENT
Unit Price (€ / mtr.)
4.0222 € *
Available: 0 mtr.
Leadtime: On Request **
Flexible stranded wire with Teflon insulation, type FEP.
For test leads, etc. Acid resistant and notch tough
Cross-section 2.5 mm², outer diameter 3.2 mm,.
Technical specifications
| Core insulation material | FEP | |
| Outer diameter | 2.9 mm | |
| Colour | transparent | |
| Cable structure | 672 x 0.07 mm | |
| Conductor category | CL.5 = fine stranded | |
| Cable material | copper, tin-plated | |
| Cable cross-section | 2.5 mm² | |
| Rated voltage | 1 kV | |
| Test voltage | 3 kV | |
| Temperature range (active) | -90 °C to 205 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444995 |
| Original Packaging | Ring with 100 meters |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
