BYB-5-94F896 | by.B

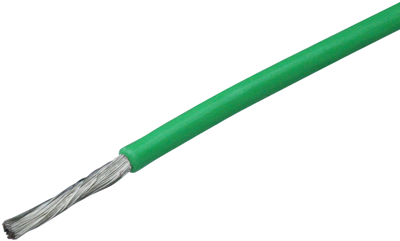

FEP-Stranded wire, high flexible, 1.0 mm², green, outer Ø 2.1 mm, BYB-5-94F896
Order No.: 94F896
EAN: 4099891187347
MPN:
BYB-5-94F896
FEP 1,00/2,1 GRÜN
Unit Price (€ / mtr.)
2.856 € *
Available: 0 mtr.
Leadtime: On Request **
Total Price:
2.86 € *
Price list
Quantity
Price per unit*
100 mtr.
2.856 €
500 mtr.
2.499 €
1000 mtr.
2.261 €
*incl. VAT plus shipping costs
**Subject to prior sale
Flexible stranded wire with Teflon insulation, type FEP.
For test leads, etc. Acid resistant and notch tough
Cross-section 1.0 mm², outer diameter 2.1 mm,.
Technical specifications
| Core insulation material | FEP | |
| Outer diameter | 2.1 mm | |
| Colour | green | |
| Cable structure | 266 x 0.07 mm | |
| Conductor category | CL.5 = fine stranded | |
| Cable material | copper, tin-plated | |
| Cable cross-section | 1.0 mm² | |
| Rated voltage | 1 kV | |
| Test voltage | 3 kV | |
| Temperature range (active) | -90 °C to 205 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444995 |
| Original Packaging | Ring with 100 meters |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
