BYB-5-94F912 | by.B

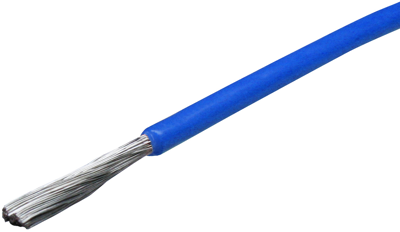

FEP-stranded wire, high flexible, 1.0 mm², blue, outer Ø 2.1 mm, BYB-5-94F912
Order No.: 94F912
EAN: 4099891187606
MPN:
BYB-5-94F912
FEP 1,00/2,1 BLAU
Unit Price (€ / mtr.)
3.5700 € *
Available: 752 mtr.
Leadtime: 10 Weeks **
Total Price:
3.57 € *
Price list
Quantity
Price per unit*
1 mtr.
3.5700 €
10 mtr.
3.0940 €
100 mtr.
2.8560 €
500 mtr.
2.4990 €
1000 mtr.
2.2610 €
*incl. VAT plus shipping costs
**Subject to prior sale
Flexible stranded wire with Teflon insulation, type FEP.
For test leads, etc. Acid resistant and notch tough
Cross-section 1.0 mm², outer diameter 2.1 mm,.
Technical specifications
| Core insulation material | FEP | |
| Outer diameter | 2.1 mm | |
| Colour | blau | |
| Cable structure | 266 x 0,07 mm | |
| Conductor category | Kl.5 = feindrähtig | |
| Cable material | Kupfer, verzinnt | |
| Cable cross-section | 1,0 mm² | |
| Rated voltage | 1 kV | |
| Test voltage | 3 kV | |
| Temperature range (active) | -90 °C bis 205 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444995 |
| Original Packaging | Ring mit 100 Meter |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
