BYB-5-94F915 | by.B
FEP-Stranded wire, high flexible, 1.5 mm², black, outer Ø 2.5 mm, BYB-5-94F915
Order No.: 94F915
EAN: 4099891187613
MPN:
BYB-5-94F915
FEP 1,50/2,5 SCHWARZ
Unit Price (€ / mtr.)
4.8076 € *
Available: 313 mtr.
Next delivery: 100 mtr. on 2025-03-21
Leadtime: On Request **
Total Price:
4.81 € *
Price list
Quantity
Price per unit*
1 mtr.
4.8076 €
10 mtr.
4.1412 €
100 mtr.
3.8318 €
500 mtr.
3.3320 €
1000 mtr.
3.0107 €
*incl. VAT plus shipping costs
**Subject to prior sale

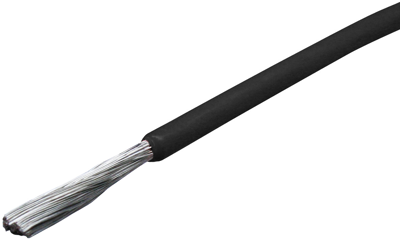

Flexible stranded wire with Teflon insulation, type FEP.
For test leads, etc. Acid resistant and notch tough
Cross-section 1.5 mm², outer diameter 2.5 mm,.
Technical specifications
| Aderisolationsmaterial | FEP | |
| Außendurchmesser | 2.5 mm | |
| Farbe | schwarz | |
| Leiteraufbau | 392 x 0,07 mm | |
| Leiterklasse | Kl.5 = feindrähtig | |
| Leitermaterial | Kupfer, verzinnt | |
| Leiterquerschnitt | 1,5 mm² | |
| Nennspannung | 1 kV | |
| Prüfspannung | 3 kV | |
| Temperaturbereich (bewegt) | -90 °C bis 205 °C |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444995 |
| Originalverpackung | Ring mit 100 Meter |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
