BYB-3-11H6006 | by.B
Circuit board, 100 x 160 mm, pitch 2.54 mm, double-sided, FR4 epoxy, Cu 35 µm, BYB-3-11H6006
Order No.: 11H6006
EAN: 4099891899141
MPN:
BYB-3-11H6006
Unit Price (€ / pc.)
14.6013 € *
Available: 96 pcs.
Leadtime: 9 Weeks **
Total Price:
14.60 € *
Price list
Quantity
Price per unit*
1 pcs.
14.6013 €
10 pcs.
10.4244 €
25 pcs.
8.9131 €
50 pcs.
7.7469 €
100 pcs.
7.0448 €
*incl. VAT plus shipping costs
**Subject to prior sale
Prototyping board ,BYB-3-11H6006, by.B

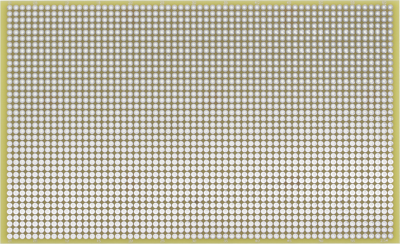

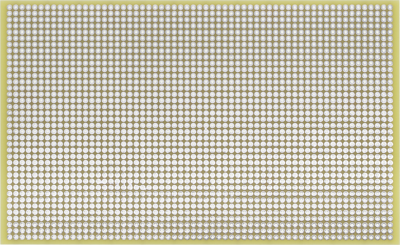

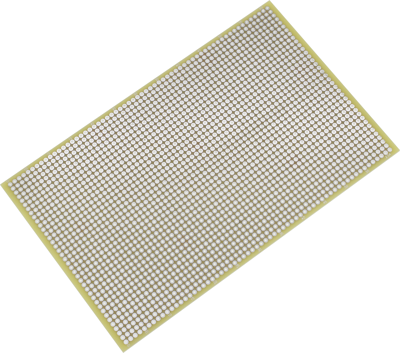

This prototyping board has dimensions of 100 x 160 mm and is made from FR-4 material.
Technical specifications
| Ausführung | Leiterplatte | |
| Breite | 160 mm | |
| Ein-/Zweiseitig | zweiseitig | |
| Höhe | 1.5 mm | |
| Kupferstärke | 35 m | |
| Länge | 100 mm | |
| Lochdurchmesser | 1 mm | |
| Material | FR4 Epoxid | |
| Rastermaß | 2.54 mm |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85340019 |
| Originalverpackung | Beutel mit 100 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
