BYB-5-94F477 | by.B
Ribbon cable, 10 pole, pitch 2.5 mm, 0.2 mm², AWG 24, PVC, gray, BYB-5-94F477
Order No.: 94F477
EAN: 4099891235246
MPN:
BYB-5-94F477
Unit Price (€ / mtr.)
2.2253 € *
Available: 197 mtr.
Leadtime: 10 Weeks **
Total Price:
2.23 € *
Price list
Quantity
Price per unit*
1 mtr.
2.2253 €
10 mtr.
1.9397 €
50 mtr.
1.7374 €
100 mtr.
1.6422 €
500 mtr.
1.5470 €
*incl. VAT plus shipping costs
**Subject to prior sale

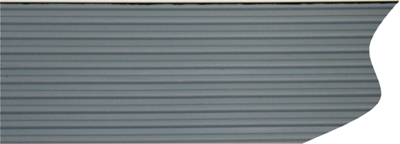

Flat ribbon cables with solid wires, 2.5 mm grid, type FBL.
Technical specifications
| Core insulation material | PVC | |
| Number of cores | 10 | |
| Version | Flachbandleitung | |
| AWG cross-section | AWG 24 | |

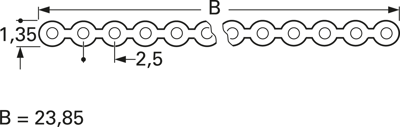

| Width | 23.85 mm | |
| Colour | grau | |
| Halogen free | No | |
| Height | 1.35 mm | |
| Cable material | Kupfer, verzinnt | |
| Cable cross-section | 0,2 mm² | |
| Rated voltage | 300 V | |
| Test voltage | 2 kV | |
| Grid | 2.5 mm | |
| Shielding | ungeschirmt | |
| Temperature range (active) | -10 °C bis 70 °C | |
| Temperature range (unmoved) | -30 °C bis 70 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
