BYB-7-30L0004 | by.B
Stripping pliers for insulated/uninsulated cable lugs, stranded wires, 0.75-6.0 mm², AWG 20-10, L 174 mm, 153 g, BYB-7-30L0004
Order No.: 30L0004
EAN: 4099891956585
MPN:
BYB-7-30L0004
Unit Price (€ / pc.)
11.8881 € *
Available: 3 pcs.
Leadtime: 2 Weeks **
Total Price:
11.89 € *
Price list
Quantity
Price per unit*
1 pcs.
11.8881 €
5 pcs.
10.6981 €
10 pcs.
9.6271 €
*incl. VAT plus shipping costs
**Subject to prior sale

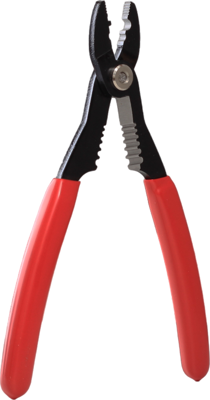

Wire stripper, BYB-7-30L0004, by.B
These multifunctional wire strippers combine various functions in one tool: Stripping, crimping, cutting and gripping. Made from robust tool steel, the pliers are ideal for fine work, with a lever arm thickness of just 4.3 mm. The comfortable red plastic handle sits comfortably in the hand. Weighing just 153 g and with compact dimensions, the pliers are very easy to handle and light enough to work with for long periods at a time. The serrated gripping surface has a length of 7 mm. The crimping range of the slots for insulated and non-insulated cable lugs is 12 - 20 AWG (0.75 - 4 mm2). The cutting blade under the joint is 11 mm long. Six slots are available for stripping stranded wires and wires in a range of 10 - 20 AWG (0.75 - 6 mm2).
Technical specifications
| Ausführung | Abisolierzange | |
| AWG-Leiterquerschnitt | AWG 20-10 | |
| Geeignet für | Isolierte/unisolierte Kabelschuhe, Litzendrähte | |
| Gewicht | 153 g | |
| Länge | 174 mm | |
| Leiterquerschnitt | 0,75-6,0 mm² | |
| VDE-/1000V-geprüft | No |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 82032000 |
Compliance
| RoHS konform | not_relevant |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
