BYB-7-30L0014 | by.B

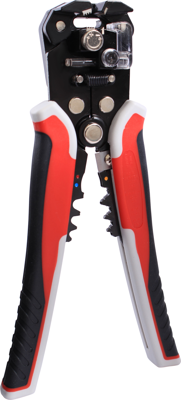

Stripping and crimping tool for cables, Cu/Al wires, insulated/uninsulated terminals, 0.25-6.0 mm², AWG 24-10, L 210 mm, 312 g, BYB-7-30L0014

Order No.: 30L0014
EAN: 4099891956639
MPN:
BYB-7-30L0014
by.B
BYB-7-30L0014 by.B Stripping Pliers, Stripping Tools
Image may differ
Unit Price (€ / pc.)
24.9781 € *
Available: 5 pcs.
Leadtime: 2 Weeks **
Total Price:
24.98 € *
Price list
Quantity
Price per unit*
1 pcs.
24.9781 €
5 pcs.
22.4791 €
10 pcs.
20.2181 €
*incl. VAT plus shipping costs
**Subject to prior sale

Stripping pliers, BYB-7-30L0014, by.B

These wire strippers are particularly suitable for hobbyists, craftsmen, field service, service workshops, electronics technicians and laboratory requirements. The tried-and-tested cable stripper is optimised for a wide range of applications and can therefore be used very flexibly. The automatic wire stripper has automatic adjustment to the respective wire diameters in a wide application range between 0.25 and 6 mm² conductor cross-section - with every new stripping process. The automatically adjusting cutting mechanism (jaw pressure) is optimally calibrated at the factory, but can be fine-tuned to individual requirements using the silver rotary knob. A fixed or recurring stripping length can be preset with the sliding, transparent limiter, which remains in a neutral position when not in use. The ergonomic handle sits comfortably in the hand and provides a good grip. The comparatively low weight of only approx. 312 g for its strength is ideal for prolonged use and prevents signs of fatigue.

Automatic stripping tool for fast and safe stripping of wires such as PVC cores and fine-stranded conductors. Automatic adjustment to the conductor cross-section Practical application range: for stripping 0.25 to 6 mm² conductors. The length of the stripping can be adjusted using a stopper, and the peel strength can also be finely adjusted! With additional functions: No crimping pliers to hand - no problem: the wire stripper has additional functions such as a cutter and crimping function for insulated/uninsulated cable lugs.

Technical specifications
Version stripping and crimping tool
AWG cross-section AWG 24-10
Suitable for cables, Cu/Al wires, insulated/uninsulated terminals
Weight 312 g
Length 210 mm
Cable cross-section 0.25-6.0 mm²
1000V Insulated No
Logistics
Country of origin CN
Customs tariff number 82032000
Compliance
RoHS conform not_relevant
Date of RoHS guidelines 3/31/15
SVHC free Yes
