KSA1M211LFT | C & K
Short-stroke pushbutton, 1 Form A (N/O), 50 mA/32 VDC, unlit , actuator (blue), 1.3 N, THT, KSA1M211LFT
Unit Price (€ / pc.)
0.8449 € *
Available: 4 pcs.
Leadtime: On Request **
Total Price:
0.84 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8449 €
25 pcs.
0.7259 €
100 pcs.
0.6783 €
250 pcs.
0.6307 €
*incl. VAT plus shipping costs
**Subject to prior sale

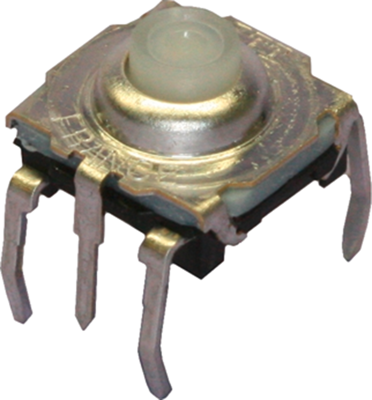

Tactile switch, KSA1M211LFT, C & K
This sealed tactile switch features cambered terminals that are designed to ensure self retention, making it suitable for both automatic and manual insertion.
Features
- RoHS compliant and compatible
Applications
- Automotive
- Industrial
- Telecommunication networks
Technical specifications
| Connection | THT | |
| illuminated | No | |
| actuating force | 1.3 N | |
| Width | 7.4 mm | |
| Actuator colour | blue | |
| Height | 4.7 mm | |
| Contact material | silver-plated | |
| Length | 7.4 mm | |
| Latching switching function | 1 Form A (N/O) | |
| Breaking capacity | 50 mA/32 VDC |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
