MP915-200-1% | Caddock
Power metal film resistor, 200 Ω, 15 W, ±1 %, MP915-200-1%
Unit Price (€ / pc.)
3.1178 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
3.12 € *
Price list
Quantity
Price per unit*
50 pcs.
3.1178 €
250 pcs.
2.9036 €
*incl. VAT plus shipping costs
**Subject to prior sale
Power metal film resistors, 15 to 100 W, tolerance 1.0 %, TO package, type Caddock MP 915/925/930/9100.
Low inductance, mountable on heatsinks, with heat dissipating ceramic mounting surface
Rated load 15 W, type MP 915.
Technical specifications
| ohmic resistance | 200 Ω | |
| Version | power metal film resistor | |
| Design | radial | |

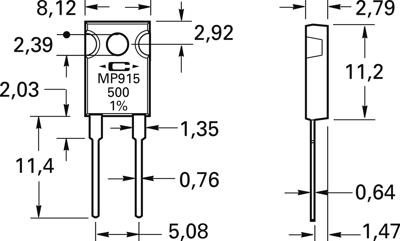

| Width | 2.79 mm | |
| Height | 11.18 mm | |
| Length | 8.12 mm | |
| Power | 15 W | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -55 °C | |
| Assembly | THT | |
| Tolerance | ±1 % | |
| Temperature coefficient | -20/80 ppm/K |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85332100 |
| Original Packaging | Bar with 50 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
