CPS-EP3000.110 | CAMTEC
AC-DC power supply, 90-150 VDC, 27.2 A, 3000 W, CPS-EP3000.110
Unit Price (€ / pc.)
1,847.5226 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
1,847.52 € *
Price list
Quantity
Price per unit*
1 pcs.
1,847.5226 €
5 pcs.
1,792.1043 €
10 pcs.
1,738.3401 €
*incl. VAT plus shipping costs
**Subject to prior sale

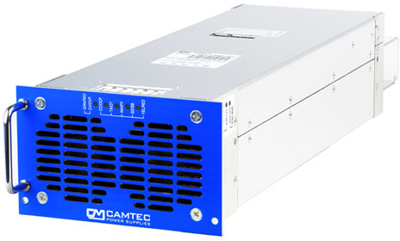

Power supply, CPS-EP3000.110, CAMTEC
The CPS-EP model is high-precision lab power supply, this power supply is designed for scalable power system in the testing automation. The CPS-EX power supply provides low noise and ripple and a precise setting at high load changes. With an efficiency of 92-94% and a power factor of 0.99, the device is highly energy efficient. This product is also equipped with high-end capacitors of outstanding lifetime our power supplies guarantee a very long and reliable operation time. The internal protection circuits protect the power supply and the connected system, even in exceptional situations.
Features
- 3D Heat dissipation
- Inhibit for safe interlocking
- Remote Shutdown
- Sense mode
- Power good relay DC-ok
- Precise dynamics on load change
- Long lifetime under hard operation
Technical specifications
| Ausgangsspannungsbereich | 90-150 VDC | |
| Ausgangsstrom | 27.2 A | |
| Breite | 126.4 mm | |
| Eingangsspannungsbereich | 184-264 VAC/250-375 VDC | |
| Höhe | 84 mm | |
| Leistung | 3000 W | |
| Tiefe | 444 mm | |
| Wirkungsgrad | 94 % |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85044095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
